Model

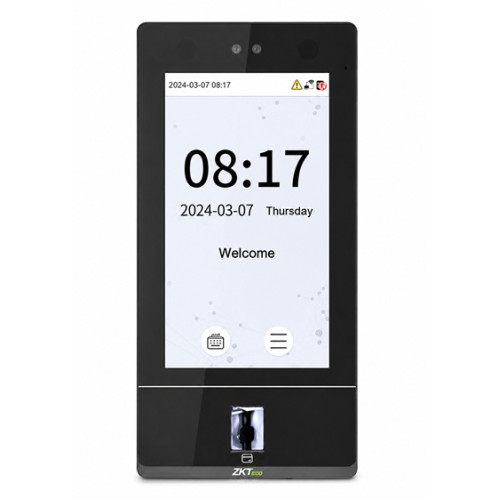

Sense Face 7A
Sense Face 7B

Display

7″@ TFT Color Touch LED Screen (600*1024)

Camera

WDR Binocular Camera @ 1MP

Operation System

Linux

Hardware

CPU: Dual Core @ 1GHz
RAM: 512 MB; ROM: 8GB
Speaker: 8 ohm@1 W
Microphone: *1 (Sensitivity: -32dB / Omni-directional / Signal-to-Noise Ratio: -32dB / Impedance: 2.2kΩ)
Supplement Light: No
Fingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 7A)

Authentication Method

SenseFace 7A: Fingerprint / Face / Card / Password (Virtual Keypad)
SenseFace 7B: Face / Card / Password (Virtual Keypad)

Fingerprint Template Capacity

SenseFace 7A: 10,000 (1:N) (Standard)
SenseFace 7B: /

Face Templates Capacity

10,000 (1:N)

Card Capacity

50,000 (1:N) (Standard)

User Capacity

50,000 (1:N) (Standard)

Transaction Capacity

300,000 (1:N)

Max. User Password Length

8 Digits

Biometric Verification Speed

Sense Face 7A: less than 0.5 sec (Fingerprint); less than 0.35 sec (Facial Authentication)
Sense Face 7B: less than 0.35 sec (Facial Authentication)

Touch less Biometric Recognition Distance

30cm to 200cm (Facial Authentication)

False Acceptance Rate (FAR) %

Sense Face 7A: FAR ≤ 0.01% (Visible Light Facial Authentication); FAR ≤ 0.0001% (Fingerprint)
Sense Face 7B: FAR ≤ 0.01% (Visible Light Facial Authentication)

False Rejection Rate (FRR) %

Sense Face 7A: FRR ≤ 0.02% (Visible Light Facial Authentication); FRR ≤ 0.01% (Fingerprint)
Sense Face 7B: FRR ≤ 0.02% (Visible Light Facial Authentication)

Biometric Algorithm

Sense Face 7A: ZK Face V4.0 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
Sense Face 7B: ZK Face V4.0

Card Type

ID Card @ 125 kHz (Standard)
IC Card @ 13.56 MHz (Optional)

Communication

TCP/IP*1
Wi-Fi (IEEE 802.11b/g/n/ax) @ 2.4 GHz (Optional)
Wiegand (Input or Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1

Standard Functions

ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)

Optional Functions

IC Card, Wi-Fi, Wireless Doorbell

Access Control Interface

RS485 (RS485 Card Reader / Biometric Reader)

Net Weight

0.622 Kg

Power Supply

DC 12V 3A (Optional)

Operating Temperature

-5°C to 45°C

Supported Software

Software: ZK Bio CVAccess / ZK BioTime
Mobile App.: ZK Bio Zlink
Cloud Service: ZK Bio Zlink

Installation

Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)

Operating Humidity

10% to 90% RH (Non-condensing)

Dimensions

Sense Face 7A: 238mm * 115mm * 22.3mm (L*W*H)
Sense Face 7B: 214mm * 115mm * 22.3mm (L*W*H)

Ingress Protection Rating

IP65 (waterproof and dustproof )
